Diablo
Equipment height
                    3.00 m
                  Space requirement
                    Ø 1.85 m
                  Safety zone
                    legally required Ø 5.60 m, recommended Ø 7.00m
                  Min. fall protection
                    24.20 m²
                  Height of fall
                    2.00 m
                  Concrete necessary m³
                    1.20 m³
                  Recommended minimum age
                    For children from the age of 3
                  Number of users
                    16
                  Standards and Rules
                    EN 1176

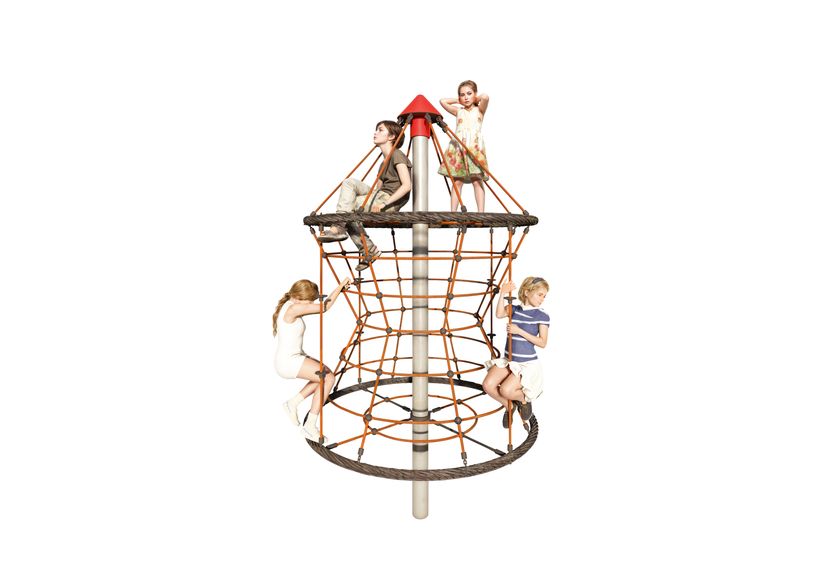

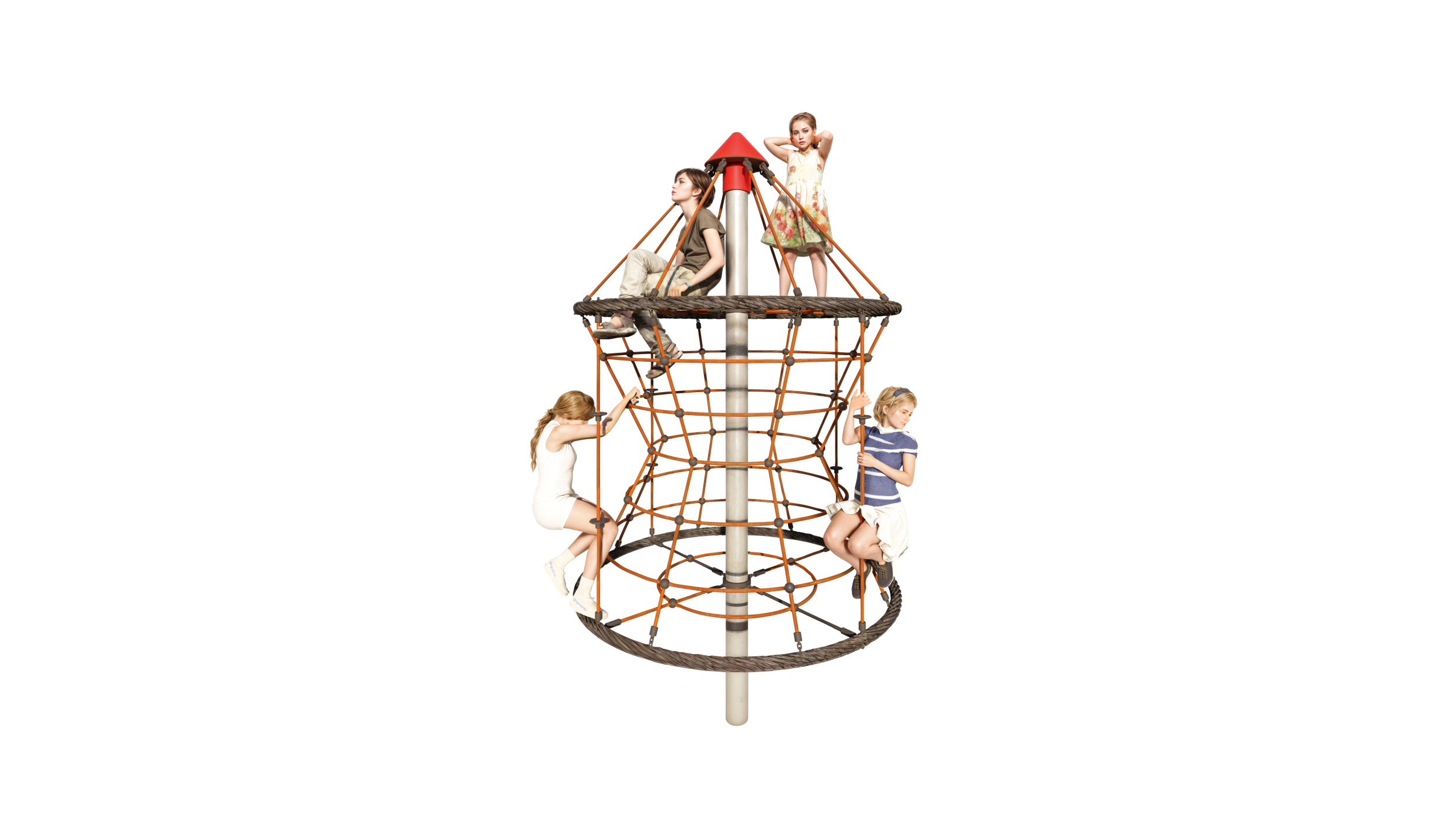

                  Diablo
The Diablo is ideal for children from the age of 3. This equipment offers a variety of challenges that children of this age are looking for. Motor skills are trained and, of course, the fun of movement is right at the top!
Balancing, shimmying and climbing is the motto here
Equipment:
- 1 hot-dip galvanized steel pole (Ø 127 mm), length 3.80 m
- 1 rotating-element
- 2 steel rope-wrapped rings (Ø 1.80 m), galvanized, with net base
- 1 funnel-shaped net
- 4 climbing ropes
- Ropes and nets made of Hercules rope (Ø 16 mm, 6-strand, with steel core)
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
            Properties

          Article number
              4592-20
            Equipment height
                3.00 m
              Space requirement
                Ø 1.85 m
              Safety zone
                legally required Ø 5.60 m, recommended Ø 7.00m
              Min. fall protection
                24.20 m²
              Height of fall
                2.00 m
              Concrete necessary m³
                1.20 m³
              Recommended minimum age
                For children from the age of 3
              Number of users
                16
              Standards and Rules
                EN 1176
              Assembly time
                1 hour without foundations
              Personnel Required
                2-3 persons
              Ships in approx.
                30-40 days

                  Downloads

                TÜV Zertifikat-0510-E



4592-20 DWG



4592-20 Video

4592-20 Assembly Instructions
