Original Huck Bird's Nest® + swings
Product overview Original Huck Bird's Nest® + swings
Viking Swinger
Article number
4585-60
Equipment height
3.50 m
Space requirement
9.40 x 3.00 m
Safety zone
13.55 x 3.70 m
Min. fall protection
50.00 m²
Height of fall
1.90 m
Concrete necessary m³
6.50 m³
Recommended minimum age
For children from the age of 6
Number of users
10
Standards and Rules
EN 1176
Unit price
€ 10,487.05
Dragon Swinger
Article number
4585-10
Equipment height
5.40 m
Space requirement
7.05 x 15.90 m
Safety zone
15.90 x 3.70 m
Min. fall protection
58.80 m²
Height of fall
1.90 m
Concrete necessary m³
7.00 m³
Recommended minimum age
For children over the age of 6
Number of users
13
Standards and Rules
EN 1176
Unit price
€ 21,867.50

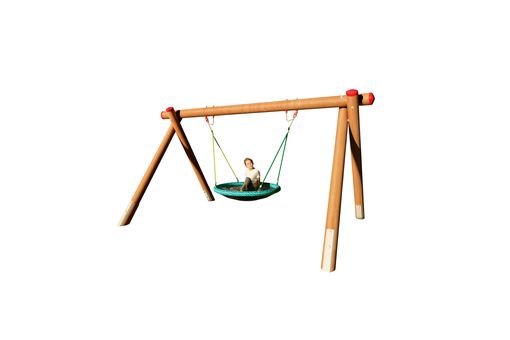

Original HUCK Honeycomb Nest
Article number
4550
Suspension height
2.00 m / 2.50 m
Diameter
approx. 1.00 m, octagonal
Drilling distance
1.54 m
Min. distance to swing frame
0.70 m
Height of fall
1.30 m / 1.55 m
Recommended minimum age
For children from the age of 4
Standards and Rules
EN 1176
Unit price
€ 1,152.48

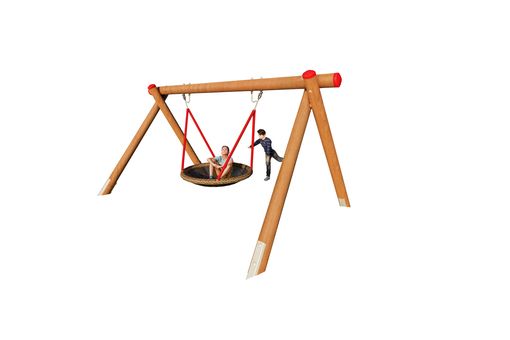

Original HUCK Bird’s Nest ®
Article number
4650
Suspension height
2.00 m / 2.50 m
Diameter
approx. 1.20 m
Drilling distance
1.90 m
Min. distance to swing frame
0.70 m
Height of fall
1.30 m / 1.55 m
Recommended minimum age
For children from the age of 4
Standards and Rules
EN 1176
Unit price
€ 1,380.76
Repair Kit for Bird's Nest rope wrapping
Article number
4650-31
Unit price
€ 78.36
Sing Seat Maxi
Article number
4695
Suspension height
2.00 m / 2.50 m
Width x height x depth
0.80 x 1.10 x 0.80 m
Drilling distance
0.80 m
Minimum distance from furthest point of equipment to the next fixed construction part
0.70 m
Seat
rubber (green) with textile insert
Armrests
Steel tube, with rope padding (blue)
Recommended minimum age
For children from the age of 6
Unit price
€ 1,488.79
Universal joint for Bird's Nest swing
Article number
4608
Unit price
€ 110.44
Swing Bearing with swivel made of of VA
Article number
4608-2
Unit price
€ 183.90
Easy-Swing "Honeycomb Nest"
Article number
4591-50-3
Equipment height
2.44 m
Seat dimensions (w x h x d)
Ø 1.00 m, octagonal
Space requirement
2.50 x 1.00 m
Safety zone
6.90 x 2.25 m
Min. fall protection
15.50 m²
Suspension height
Fully adjustable, 1.40 - 2.00 m
Height of fall
1.35 m
Concrete necessary m³
0.80 m³
Recommended minimum age
For children from the age of 4
Number of users
3
Standards and Rules
EN 1176
Unit price
€ 1,580.62
Oval Rope Swing
Article number
4630
Suspension height
2.00 m / 2.50 m
Dimension
approx. 0.60 x 1.05 m
Drilling distance
0.70 m
Minimum distance from furthest point of equipment to the next fixed construction part
0.80 m
Recommended minimum age
For children from the age of 4
Number of users
2
Unit price
€ 1,073.88
Jungle Rope Swing, Suspension height 2:00 m
Article number
4770-08-200
Suspension height
2.00 m
Rope thickness
90/90 mm
Drilling distance
2.00 m
Min. distance to swing frame
0.70 m
Height of fall
1.25 m
Recommended minimum age
For children from the age of 6
Number of users
1
Standards and Rules
EN 1176
Unit price
€ 744.68
Double Toddler Swing
Article number
4693-70
Suspension height
2.00 - 2.50 m
Attachments
Hercules rope, coloured
Suspension
2 x articulated swing hook Art. No. 4602
Recommended minimum age
For children from the age of 2
Standards and Rules
EN 1176
Swing Seat, black, with 2.00 m long chains
Article number
4712
Suspension height
2.50 m
Attachments
2.00 m chain, galvanized
Suspension
2 x articulated swing hooks no. 4602
Standards and Rules
EN 1176
Unit price
€ 140.01
Original HUCK Bird's Nest® Sombrero
Article number
4649-120
Suspension height
2.00 - 2.50 m
Diameter
Ø 1.20 m
Drilling distance
1.90 m
Min. distance to swing frame
0.80 m
Height of fall
1.30 - 1.55 m
Number of users
7
Standards and Rules
EN 1176
Unit price
€ 1,920.70
Original HUCK Bird's Nest® Sombrero
Article number
4649-140
Suspension height
2.00 - 2.50 m
Diameter
Ø 1.40 m
Drilling distance
1.90 m
Min. distance to swing frame
0.80 m
Height of fall
1.30 - 1.55 m
Number of users
7
Standards and Rules
EN 1176
Unit price
€ 2,290.75
Swing Frame Orlando
Article number
4576-1-220
Suspension height
2.20 m
Equipment height
2.47 m
Space requirement
3.50 x 1.70 m
Min. fall protection
18 m²
Safety zone
7.30 x 2.45 m
Height of fall
1.40 m
Concrete necessary m³
0.90 m³
Standards and Rules
ASTM 1487 and EN 1176
Unit price
€ 5,169.24
Climbing Chimney (with ground anchors)
Article number
4611
Suspension height
2.00 m / 2.50 m
Diameter
approx. 0.70 m
Min. distance to swing frame
0.70 m
Recommended minimum age
For children from the age of 6
Number of users
4
Standards and Rules
EN 1176
Unit price
€ 1,227.89
Tire Swing
Article number
4698-1
Suspension height
2.00 - 2.50 m
Suspension
2 x articulated swing hook Art. No. 4602
Standards and Rules
EN 1176
Unit price
€ 209.81
Rope Ring Swing Carousel
Article number
4620
Suspension height
2.00 m / 2.50 m
Diameter
approx. 0.70 m
Min. distance to swing frame
1.00 m
Recommended minimum age
For children from the age of 6
Number of users
4
Standards and Rules
EN 1176
Unit price
€ 1,083.52
Trio Swing
Article number
4772-08
Suspension height
2.00 m / 2.50 m
Rope thickness
140/140 mm
Drilling distance
3 x 0.55 m
Min. distance to swing frame
0.60 m
Height of fall
1.25 m / 1.50 m
Recommended minimum age
For children from the age of 6
Number of users
3
Standards and Rules
EN 1176
Unit price
€ 1,054.96
Partner Swing "Rustikal"
Article number
4771-08
Suspension height
2.00 m / 2.50 m
Rope thickness
140/140 mm
Drilling distance
2 x 0.60 m
Min. distance to swing frame
0.60 m
Height of fall
1.25 m / 1.50 m
Recommended minimum age
For children from the age of 6
Number of users
2
Standards and Rules
EN 1176
Unit price
€ 783.10
Jungle Rope Swing, Suspension height 2.50 m
Article number
4770-08-250
Suspension height
2.50 m
Rope thickness
90/90 mm
Drilling distance
2.00 m
Min. distance to swing frame
0.70 m
Height of fall
1.50 m
Recommended minimum age
For children from the age of 6
Number of users
1
Standards and Rules
EN 1176
Unit price
€ 782.68
Swing Frame douglas fir, suspension height 2.50 m
Article number
4577-1-250
Suspension height
2.50 m
Space requirement
4.15 x 3.00 m
Safety zone
7.60 x 2.50 m
Min. fall protection
18.90 m²
Height of fall for single-seat swings
1.45 m
Height of fall for bird’s nest
1.55 m
Equipment height
2.75 m
Concrete necessary m³
2.00 m³
Recommended minimum age
For children from the age of 4
Number of users
6
Standards and Rules
EN 1176
Unit price
€ 3,424.21
Swing Frame douglas fir, long, suspension height 2.00 m
Article number
4577-2-200
Equipment height
2.25 m
Space requirement
7.15 x 2.60 m
Safety zone
9.05 x 7.20 m (varies depending on attachment)
Min. fall protection
41.00 m²
Height of fall for single-seat swings
1.20 m
Height of fall for bird’s nest
1.30 m
Suspension height
2.00 m
Concrete necessary m³
2.00 m³
Recommended minimum age
For children from the age of 6
Number of users
8
Standards and Rules
EN 1176
Unit price
€ 3,589.57
Swing Frame douglas fir, long, suspension height 2.50 m
Article number
4577-2-250
Equipment height
2.75 m
Space requirement
7.15 x 3.00 m
Safety zone
9.05 x 8.00 m (varies depending on attachment)
Min. fall protection
44.00 m²
Height of fall for single-seat swings
1.45 m
Height of fall for bird’s nest
1.55 m
Suspension height
2.50 m
Concrete necessary m³
2.00 m³
Recommended minimum age
For children from the age of 6
Number of users
8
Standards and Rules
EN 1176
Unit price
€ 3,824.99
Original HUCK Mini Bird’s Nest®
Article number
4650-85
Suspension height
2.00 m / 2.50 m
Diameter
approx. 0.90 m, round
Drilling distance
1.54 m
Min. distance to swing frame
0.70 m
Height of fall
1.30 m / 1.55 m
Recommended minimum age
For children from the age of 4
Standards and Rules
EN 1176
Unit price
€ 1,097.60

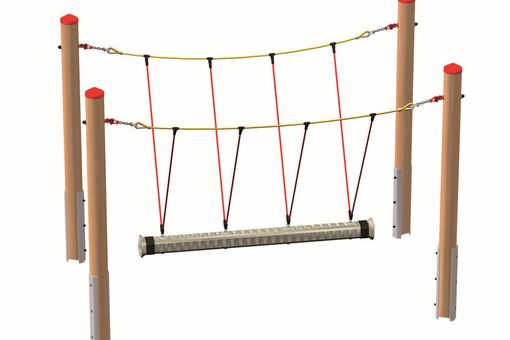

Gondolar Swinger, with wood posts, with post shoes
Article number
4585PS
Equipment height
2.80 m
Space requirement
3.75 x 2.20 m
Safety zone
7.90 x 3.20 m
Min. fall protection
24.90 m²
Height of fall
1.50 m
Concrete necessary m³
2.40 m³
Recommended minimum age
For children from the age of 6
Number of users
4
Standards and Rules
EN 1176
Unit price
€ 6,498.33
High, higher, highest! Weightlessness and feeling the wind in your hair - there are many reasons why swings are so popular with children. That's why we have a whole range of swing variants that we would like to introduce to you. As always, we make sure that there is something for every age group. But we also provide fun for people with physical disabilities. We offer the right solution for every requirement. Do you still need suitable accessories? No problem, we have a large selection of swing seats etc.
Our swing highlight, the HUCK Bird's Nest®, is just the thing for inseparable friends. Variable in size and color, it comes with extra strong padding and offers great swinging fun, safe as a nest.
Our group play equipment promotes shared fun: this is the focus of our group swings, on which children can let off steam together. Group swings promote a sense of togetherness and create the perfect basis for good teamwork between children. Why? The swing can only be moved if everyone "pulls together" by swinging in the same direction.
