Bird‘s Nest Tower, wood
Article number: 4652-20
Recommended minimum age
For children from age of 6
Number of users
32
Space requirement
7.10 x 6.85 m
Safety zone
Ø 10.00 m
Equipment height
7.15 m
Height of fall
2.90 m
Min. fall protection
78.50 m²
Concrete necessary m³
2.50 m³

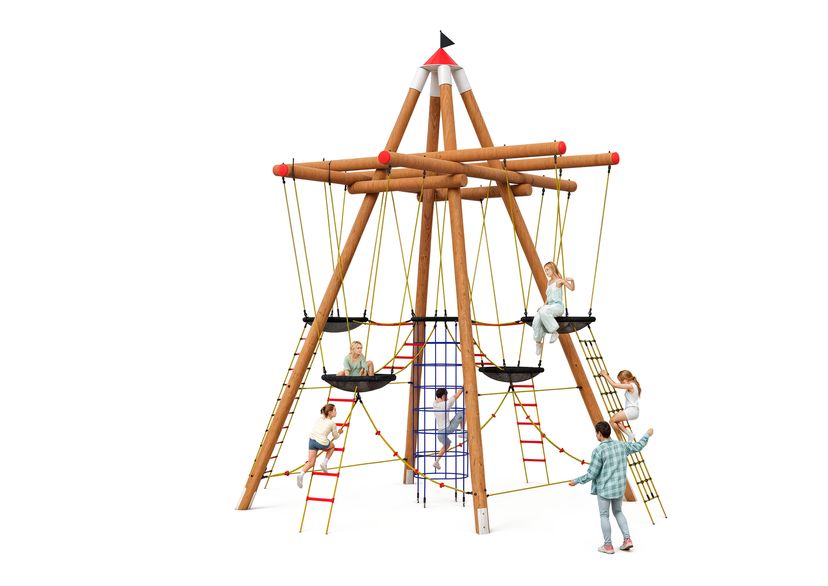

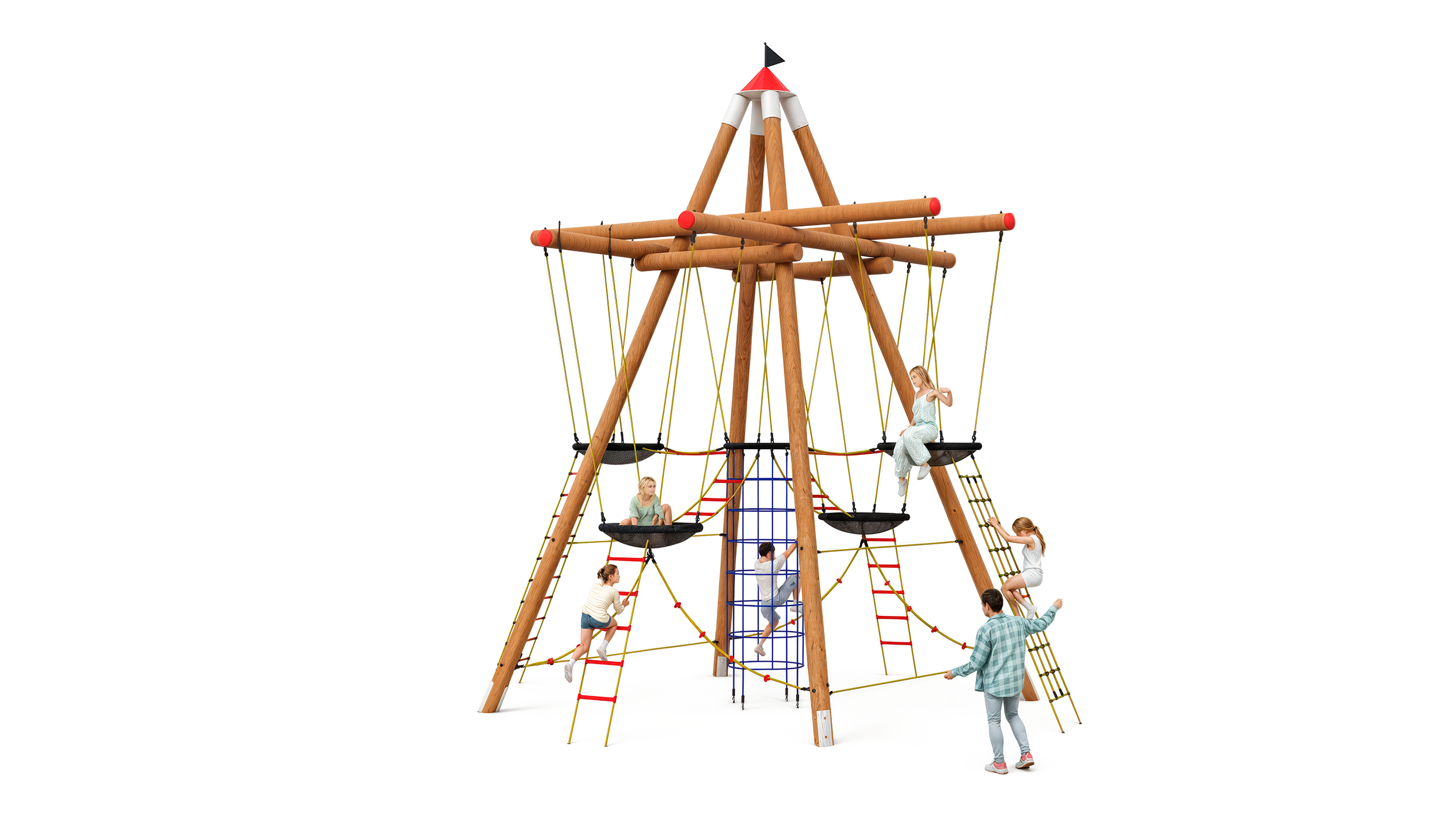

Bird‘s Nest Tower, wood
The Bird‘s Nest Tower is ideal for children from the age of 6. This equipment offers a variety of challenges that children of this age are looking for. Motor skills are trained and, of course, the fun of movement is right at the top!
Balancing, shimmying and climbing is the motto here
Equipment:
- 4 upright posts made of Douglas fir (Ø 180 mm), with post shoes, length 8.05 m
- 4 cross beams made of Douglas fir (Ø 180 mm), length 5.20 m
- 4 original Huck bird's nest (Ø 1.00 m)
- 4 ladder passages
- 2 climbing nets
- 2 rope ladders
- 1 net chimney
- Ropes and nets made of Herkules (Ø 16 mm, 6-strand, with steel core)
Our HUCK rope play equipment is characterised by its versatility and quality. In addition to various rope colours, such as green, blue, yellow and red, you can also choose from different plastic adapter colours. The colour of each device can be adapted to almost all customer requirements.
To ensure the best possible quality for you, our products are manufactured in our own premises in Germany and checked by our qualified employees before delivery.
Properties
Article number
4652-20
Equipment height
7.15 m
Space requirement
7.10 x 6.85 m
Safety zone
Ø 10.00 m
Min. fall protection
78.50 m²
Height of fall
2.90 m
Concrete necessary m³
2.50 m³
Recommended minimum age
For children from age of 6
Number of users
32
Standards and Rules
EN 1176
Assembly time
8 hours without foundations
Personnel Required
3-5 persons
Ships in approx.
30-40 days
Downloads
-
TÜV Zertifikat-0527-E PDF
-
4652-20 Video MP4
-
4652-20 DWG DWG
-
4652-20 Assembly Instructions PDF
